品牌:盐城特达
规格:KHT5500
起订:1件
供应:10件
发货:3天内
立即购买

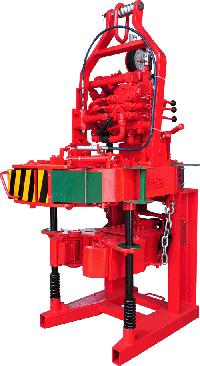

无牙痕KHT5500Powertong 接箍拧扣机 盐城特达钻采设备有限公司KHT5500 hydraulic power tongs is the open power tongs which is applicable to make up or break out 23/8"-31/2" drill pipes, 31/2"-41/2" tubing and 41/2"-51/2" casing during oil field workover operation. And three-jaw-plate clamping device is adopted in the master tong and back tongs. The device may ensure minimum string damage. It has high operation efficiency and may reduce working intensity of the workers. It can enhance screwing quality of the string and reduce string accidents caused by improper workover operation.
1. Application range :Master Tong： 23/8″--51/2″；Back tong： 23/8″--61/2″
2. Torque range
High：2500 ft·lbs/ 3400 N·m
Low： 20000 ft·lbs / 27000 N·m
3. Max RPM
@40GPM / 150 LPM High： 78 RPM Second High：33 RPM
Second Low：22 RPM Low： 9.5 RPM
4.Oil flow 2000 PSI @40 GPM / 14 MPa @150 LPM
5.Overall dimension (L×W×H) 48″×33.9″×67.3″ / 1220×860×1708 mm
