产品名称：
|

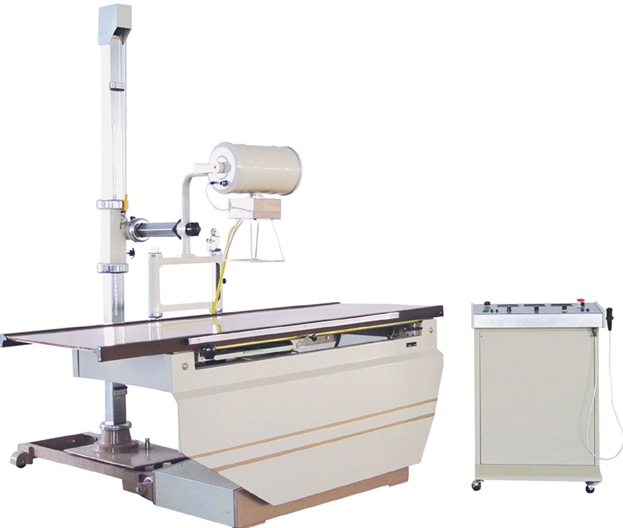

50毫安医用诊断X射线机
|
|||
|
产品型号：
|
F50-C
|
|||
|
产品描述：可供医院、卫生所作透视、摄影用。还可作一般的胃肠检查用。本机具有适时摄影装置，电动滤线器
光定位限束器,备有床面可移动的电动诊视床。并装有过载自动保护电路，是一部理想的多功能的X射线诊断机。
|
||||
|
概 述
|
GENERAL
|
|||
|
可供医院、卫生所作透视、摄影用。
还可作一般的胃肠检查用。
本机具有适时摄影装置，电动滤线器、
光定位限束器,备有床面可移动的电动诊视床。
并装有过载自动保护电路，
是一部理想的多功能的X射线诊断机。
|
It is suitable for both fluoroscopy
and radiography in hospitals and health centers.
It can also be used in conventional stomach examinations.
The unit is provided with a spot-film device, a motor-driven Bucky
, a collimator and a motor-driven diagnostic table
with the tabletop movable. It is an ideal x-ray diagnostic unit
with multi-function
|
|||
|
主要性能
MAIN TECHNICAL PARAMETER
|
||||
|
X射线发生器
X-ray generator
|
固定阳极,双焦点,桥式硅整流,油浸自冷组合式
Stationary anode, double focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit.
|
|||
|
大额定容量
Max rated capability
|
透视Fluoroscopy
|
75kVp，3mA
|
||
|
摄影Radiography
|
电流Current
|
50 mA
|
30 mA
|
|
|
电压Voltage
|
90 kVp
|
90 kVp
|
||
|
时间Time
|
2 s
|
6.3 s
|
||
|
电源条件
Power supply
|
电压Voltage
|
180～240V
|
||
|
频率Frequency
|
50Hz
|
|||
|
容量Power
|
应不低于5kVA(not lower than 5kVA)
|
|||
|
内阻Resistance
|
应不大于1Ω(not larger than 1Ω)
|
|||
|
管电压调节范围
Voltage adjustment range of x-ray tube
|
45～90kVp (连续可调)
45～90kVp (continuous)
|
|||
|
电子计时器Range of the timer
|
0.08～6.3 s
|
|||
|
荧光屏尺寸Fluorescent screen size
|
356 mm×356 mm
|
|||
|
焦点至荧光屏距离
Distance between the focus to the screen
|
大830 mm（max）
*小630 mm (min)
|
|||
|
运载架移动幅度
Tube head carriage movement range
|
上下(vertical): 1100 mm
左右(horizontal): 260 mm
|
|||
|
X射线管规格
Specification of X-ray tube
|
XD6-3.5/100固定阳极双焦点, 2.6mm×2.6mm/1.0mm×1.0mm
Stationary anode, double focus
|
|||
|
限束器
Collimator.
|
焦片距在100cm时照射野，大45×45 cm，*小0×0 cm
Field coverage at 100 cm FFD，45×45 cm max,0×0 cm min
|
|||
|
床面移动幅度Movement of the tabletop
|
400 mm
|
|||
|
适时摄影胶片尺寸
Field size of spot film device
|
127mm×178mm一张 (one piece)
203mm×254mm一张 (one piece)
1/2（127mm×178 mm）二张 (two pieces)
|
|||
|
运输尺寸/重量
Transport dimension，Weight
|
234×100×123(cm)，净重(NET)410kg/毛重(GROSS)535kg
|
|||
